GLADEN PICO 8|10 DSP V2

With the PICO V2 8|10 DSP, MOSCONI is launching the second generation of PICO DSP amplifiers into the car audio market. In addition to improved connectivity, the new PICO boasts enhanced sound performance and greater efficiency.

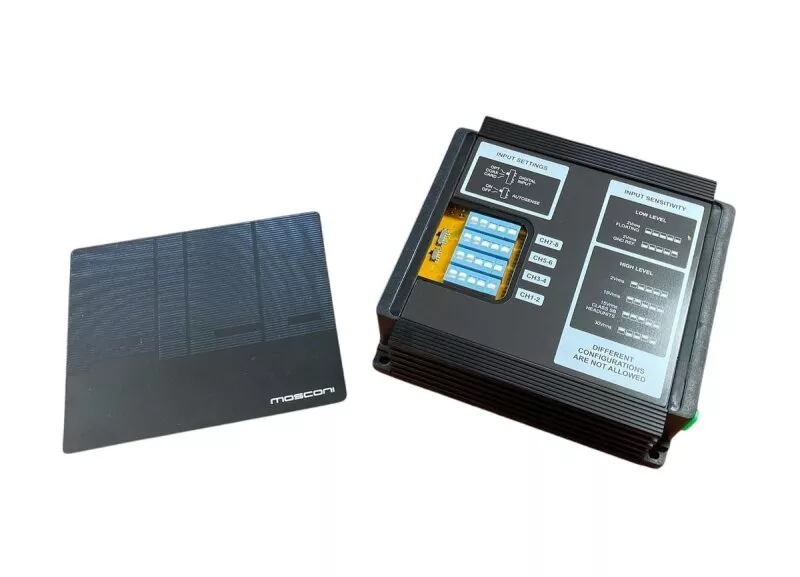

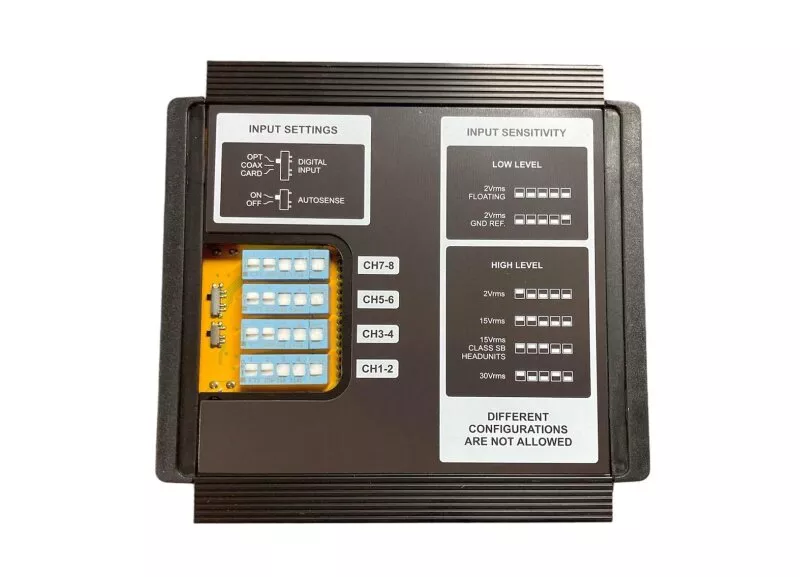

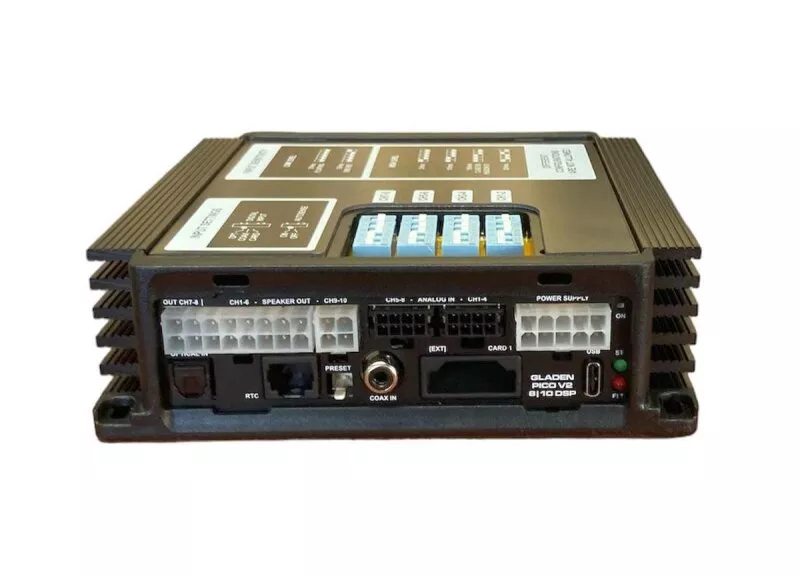

All connections are now located on one side, and under a magnetic cover are all the relevant control switches required for operation in modern vehicles.
Furthermore, all inputs are now capable of both high and low levels. All desired DSP settings can now be adjusted via a USB-C port.

Perfect OEM Integration:

Powerful DSP amplifier, optimized for use with factory radios. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 watts + 4 x 80 watts, it is ideal for active and semi-active systems, as well as classic front + rear + subwoofer setups. With two digital inputs (SP-Dif and BT+) and two processed line outputs, it's ready for the future. Converterless high-speed PWM power amplifiers: Highly efficient PWM power amplifiers with the world's fastest carrier frequency (> 2 MHz) enable Hi-Res audio transmission and extremely small form factor. Modulation occurs directly from the 96 kHz TDM signal of the DSP without a DAC, resulting in near-zero background noise and THD+N ~ 0.02% / 1 W.

INPUT PAGE:

• 8 x Switchable Analog Inputs (High-Level / Low-Level) Class SB Compatible, 2-30V
• 1 x Optical S/PDIF Digital Input (8 kHz – 96 kHz Sampling Rate)
• 1 x Coaxial Digital Input (8 kHz – 96 kHz Sampling Rate)
• 1 x BT Port with S/PDIF – TTL (8 kHz – 96 kHz, e.g., for Mos_BTS BT Streaming Module)
• BT Extended Digital Audio Port (BT+)
  (Flexible 8 kHz – 384 kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g., for MOS BTS-LD4C BT streaming module or extended analog inputs)

DSP SECTION:

• 912 MHz, 32-bit audio port, 64-bit core
• Double Precision 56-bit filter calculation
• Sample rate 96 kHz

CONTROL:

• 1 x Remote Connector (Analog, for RTC.2 potentiometer remote control)
• 1 x BT+ control Port (Connection for MOS-BT3.0 (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C high-res streaming module, Gladiator controller
• Controllable with pilot tone
• 1 x Remote Out, 1 x Remote In, Auto-Remote on high-level connection
• Connections with MOLEX® plug contacts.
• Very small size with low heat generation, ideally suited for installation behind panels

SOFTWARE:

• 3 x 9-band parametric input EQ (de-equalizing), dynamic
• 6 x input delay 0 – 3 ms / 0.01 ms (de-delay)
• 10 x digital input level controls (signal conditioning)
• Flexible mixer for signal routing
  (side-separated, can summ and subtract, 10 inputs to 4 x 2 output groups)
• 6 x 30-band or 4 x 30 band + 2 x 15 band group EQ (parametric, relative phase remains stable) 8 x 10 band output filters High-pass / Low-pass / High-shelf / Low-shelf / Notch / All-pass (1st - 4th order) / Speaker EQ 8 (10) x Speaker Delay 0 – 12 ms, 0.01 ms 8 x Speaker Phase switch Flexible phase control with calculation tool Extensive analysis tools integrated Barnie Compatible BARNIE Compatible Technical Specifications Mosconi Pico V2 8|10 DSP Output Power / Output Side: Output Power at 4 Ohms: 4 x 50 Watts (Channel: 1 - 4) 3-Ohm stable (not bridgeable!)

• Output power at 4 ohms:

  4 x 80 watts (channels: 5 + 6 / 9 + 10) 2-Ohm stable / bridgeable

• Output power at 4 ohms:

  4 x 45 watts + 2 x 210 watts (bridged channel: 5 + 6 / 9 + 10)

• Line Out:

  2 x 2 Vrms line out outputs (channels: 7 + 8)

Data:

• Input voltage:

  2 Vrms (LL) - 15 Vrms (HL) by default - 30 Vrms (HL)

• Overall efficiency:

  > 80%

• Auto-On (only High Level):

  Off-BTL

• Dimensions:

  150 x 160 x 46 mm

• Weight:

  1150 grams
