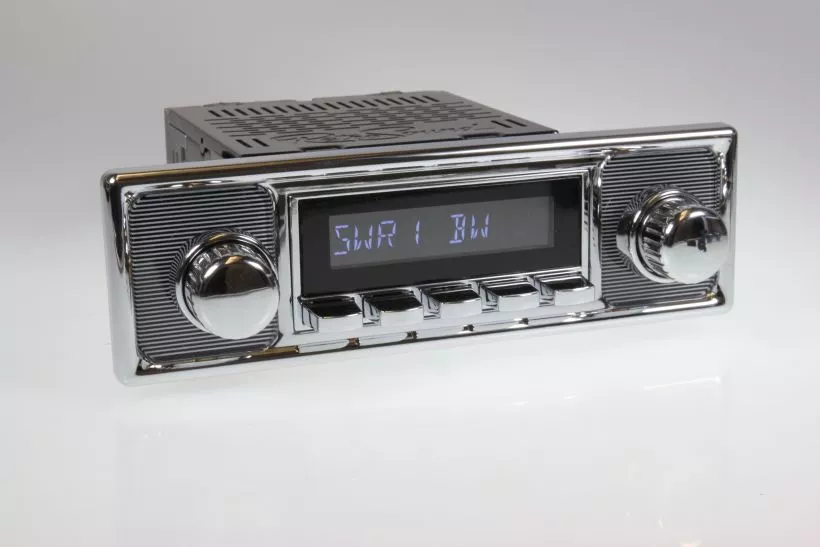

Car radio in pinstripe design for Mercedes Benz with DAB+, USB and Bluetooth Retrosound San Diego

The "San Diego" is RetroSound's first car radio with DAB+, Bluetooth hands-free calling, A2DP audio streaming, and Apple iPod/iPhone control. With this single unit, you get the classic design of your vehicle without sacrificing modern digital media. Two USB and two AUX inputs allow you to connect external MP3 storage devices such as an iPhone, iPod, or USB flash drive. The radio comes with a mounting bezel in the Becker pinstripe design and a set of knobs for your classic Mercedes-Benz, BMW, Opel, and other vehicles from the late 1960s and 1970s. Any concerns that installing a RetroSound car radio might jeopardize your historic vehicle registration are unfounded. There is confirmation, with the approval of the entire AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord, Dekra, KÜS, GTÜ), stating that the RetroSound "Model Hermosa", "Model Classic" and the RetroSound "San Diego", including vehicle-specific trim and control knobs, may be installed in classic cars with H-plates and will not prevent the issuance of an H-plate!

Features:
- Playback of MP3 and WMA files via rear-mounted USB ports. These can be relocated to a suitable position. (Cable length approx. 50cm)
- Apple iPod/iPhone control
- Bluetooth hands-free system with A2DP audio streaming, hands-free microphone included
- Adjustable LCD backlight with 32,000 different colors
- FM/AM radio receiver with RDS and 30 station presets, DAB+ reception with 5 station presets
- Switchable radio frequencies (USA/EUROPE)
- New control system with knob and ring functionality
- Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
- Three pairs of RCA outputs for external amplifiers
- Patented "InfiniMount" mounting system and control knobs
- 3 equalizer programs plus individual bass/treble/fader/balance adjustments
- E-approval e13 03 10006 e13*72/245*2006/96*10006*00
- XBAS Loudness function
- Separate power-on lead for motor antenna, antenna splitter and amplifier
- Fixed memory; the device retains the settings and saved radio stations even after the vehicle battery has been disconnected for an extended period
- The radio is supplied with plastic control knobs. Some of the control knob variations are available in metal and can be purchased separately.

Technical Specifications:

FM
- European Broadcast frequency range with RDS 87.5-107.9
- External antenna connection
- Sensitivity 12.5 dBf
- Station separation 75 dB at 400 kHz
- Signal-to-noise ratio 62 dB
- Distortion at 1 kHz 0.8% (stereo) 0.5% (mono)
- Channel separation 32 dB at 1 kHz
- Frequency response 30-16000 Hz

MW
- Frequency range 530-1710 kHz

IPOD/IPHONE COMPATIBILITY
You can, of course, operate an Apple iPhone wirelessly via Bluetooth with this car radio. If you wish to control it via a wired connection, you will also need a suitable USB adapter cable.

General Data:
- Dimensions of control unit 89x38x27mm
- Dimensions of radio base unit 101x51x136mm
- Power supply 10.5 to 14.4 volts
- Maximum current draw 15 amps
- Quiescent current 3.5 mA
- Output power 12V, 4 ohms, <1% THD: 4x15 watts sine wave
- Speaker impedance 4-8 ohms
- RCA outputs 4 channels 2.85 volts
- Input sensitivity Aux1, Aux2 >300 mV / 6 kOhms

LEGAL NOTICE
iPod and iPhone are trademarks of APPLE Computer, registered in the U.S. and other countries. To achieve optimal results, Apple has established specific compatibility requirements for accessory manufacturers. Products designed and certified to be compatible will have the "Made for" label on their packaging. To ensure compatibility when purchasing third-party accessories for use with your device, look for accessories labeled "Made for" your device (see below).
"Made for iPod" means that an electronic accessory is designed specifically for connection to the iPod and has been certified by the developer to meet Apple performance standards.
"Made for iPhone" means that an electronic accessory is designed specifically for connection to the iPhone and has been certified by the developer to meet Apple performance standards.

6-VOLT ELECTRICAL SYSTEMS
You will need a voltage converter if you want to operate a RetroSound car radio in a vehicle with a 6-volt electrical system. We recommend the Statron 2238.0 DC/DC converter (www.statron.de) in such a case.

E-APPROVAL
- E-approval e13 03 10006 e13*72/245*2006/96*10006*00
