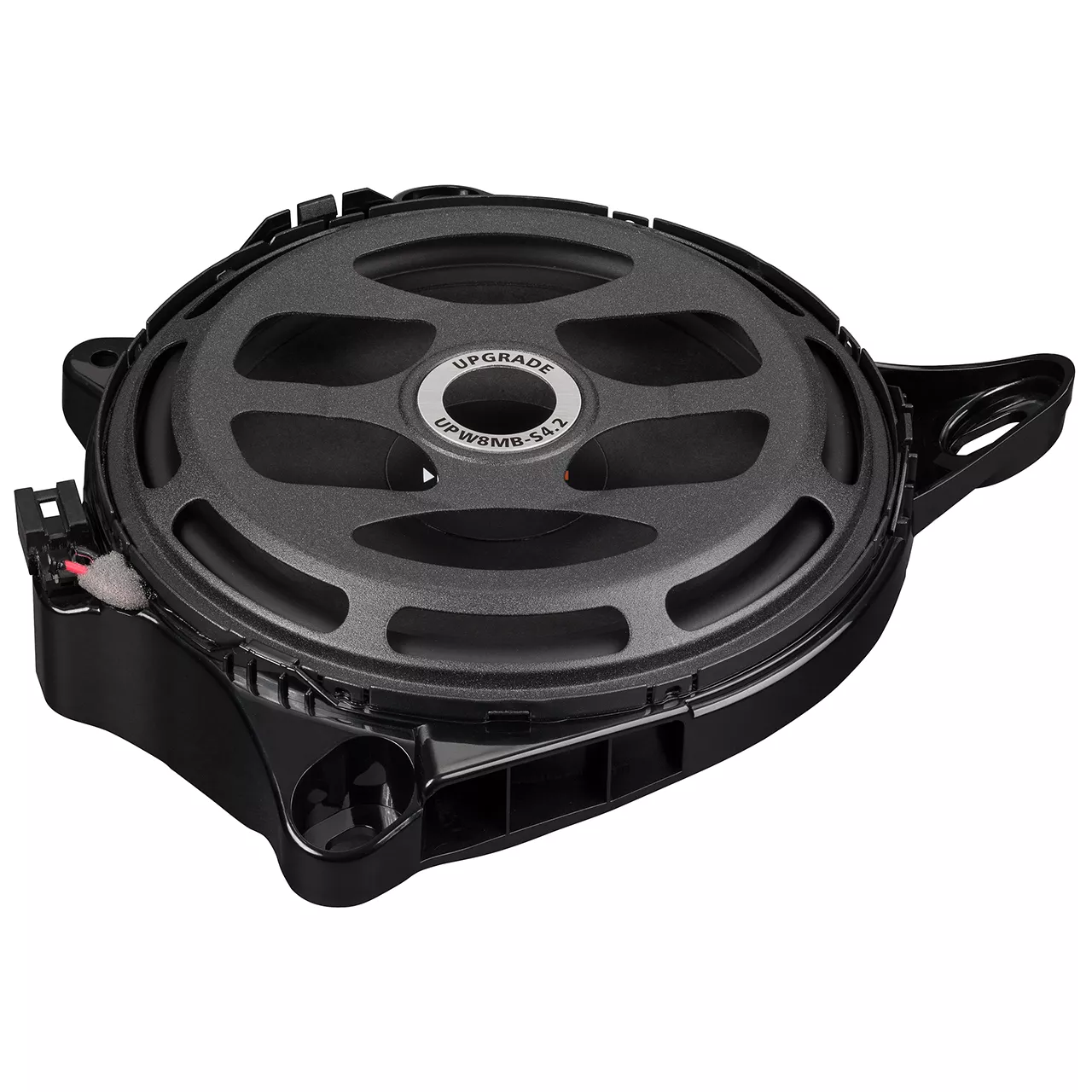

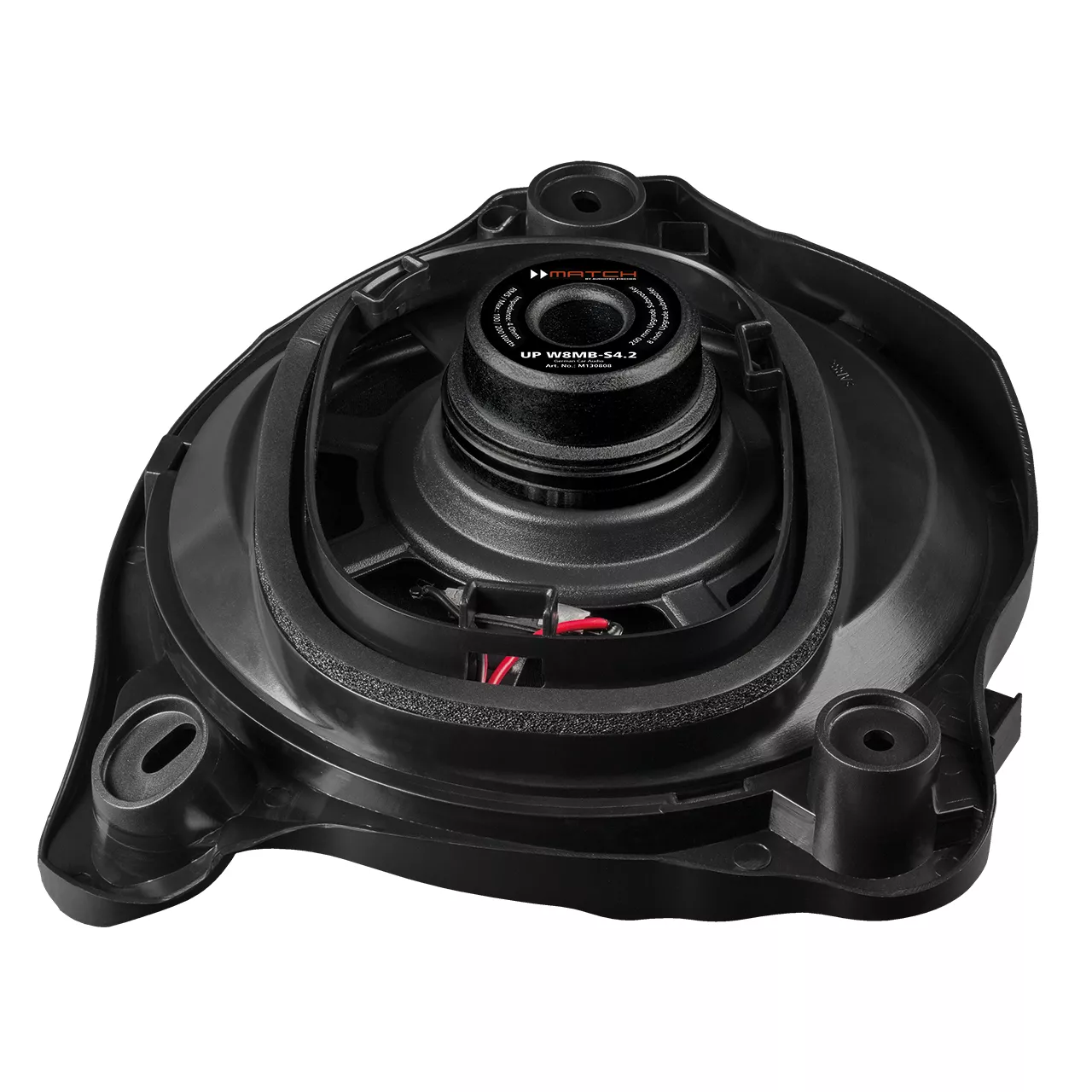

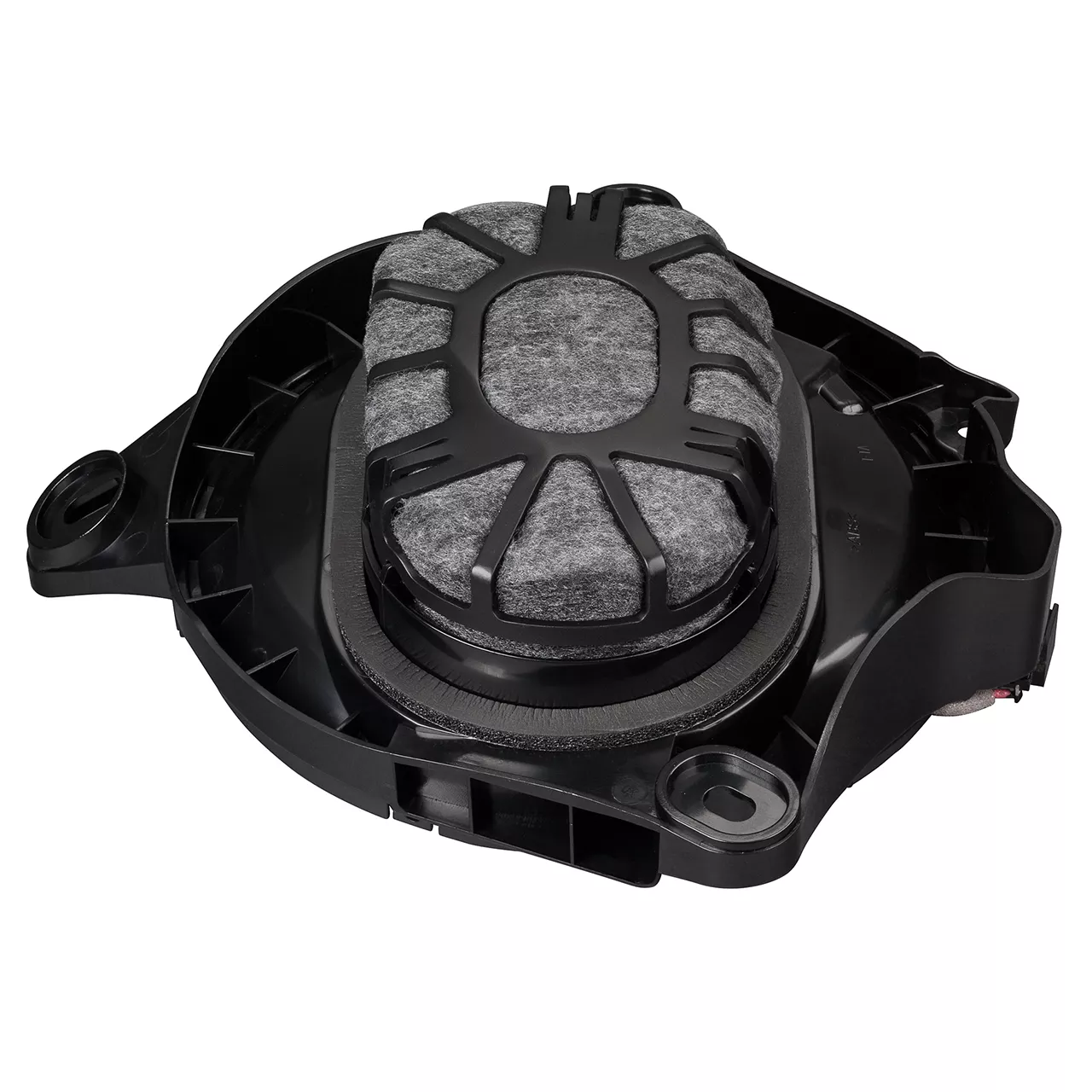

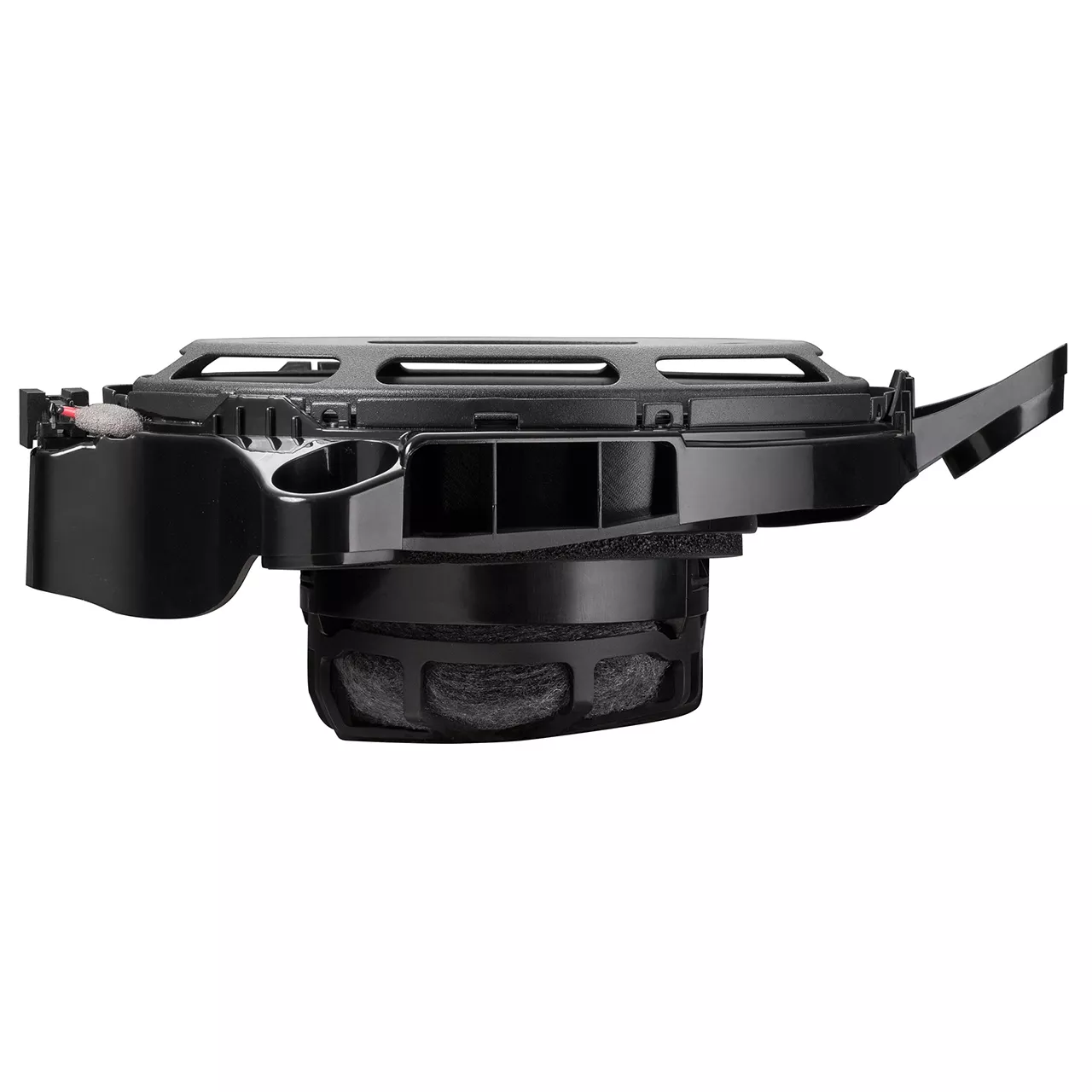

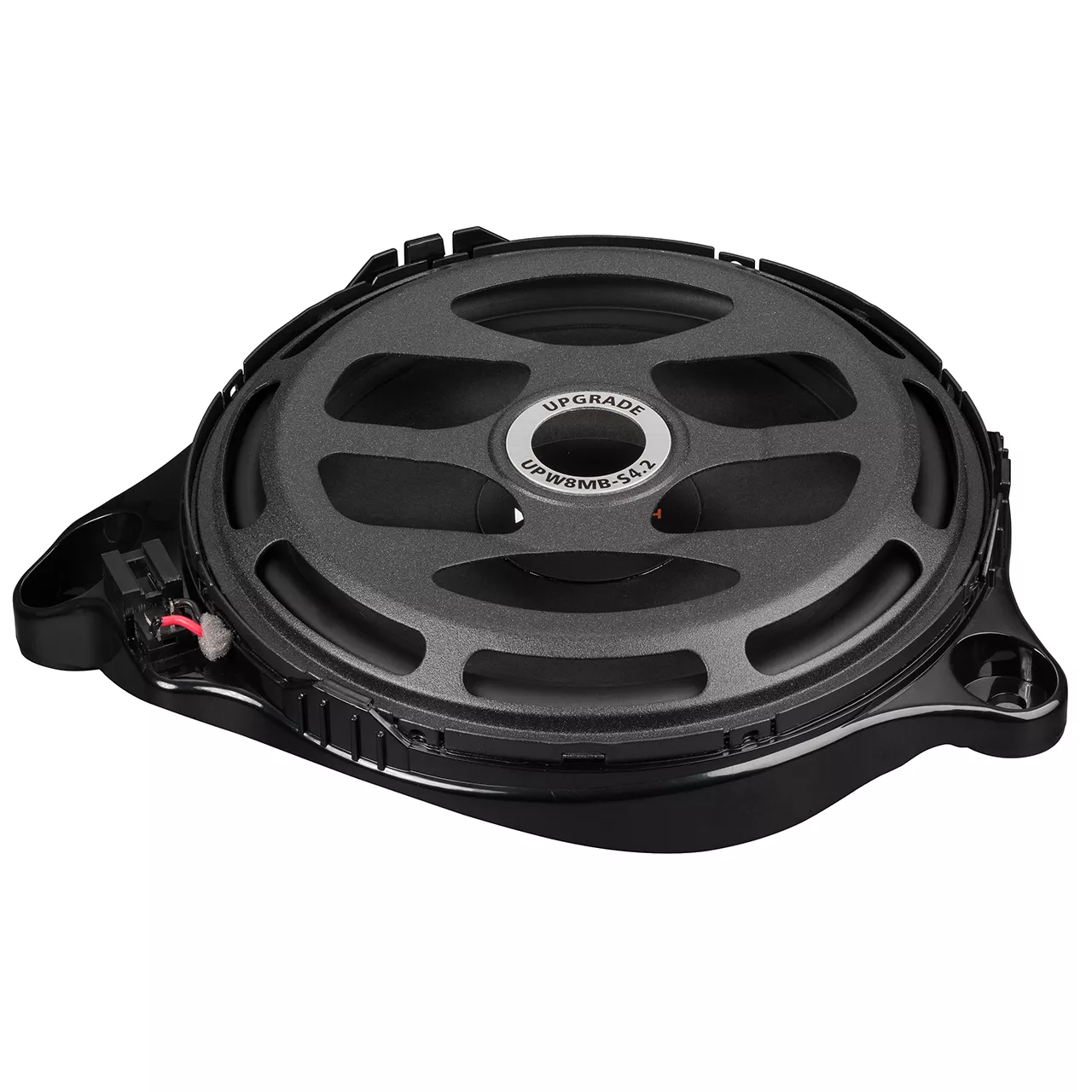

MATCH UP W8MB-S4.2 LHD | Subwoofer set Mercedes Benz W167

Premium vehicles deserve premium sound – and that includes deep, powerful bass performance, which the original speakers in Mercedes-Benz vehicles simply lack. The optimal solution is so simple: the two heavy-duty 200 mm woofers of the UP W8MB-S4.2 system fit perfectly into the original mounting positions in the firewall and deliver precisely the punch that brings music to life and makes it tangible. These speakers reveal their maximum performance especially when combined with one of our DSP amplifiers for Mercedes.

Features

• 2 x 200 mm subwoofers with an exclusively developed speaker basket for Mercedes vehicles
• Subwoofer specially tuned for Mercedes with the highest sound quality
• Aperiodically damped basket for deep and precise bass reproduction
• Vehicle-specific connection terminals for Mercedes vehicles for easy connection

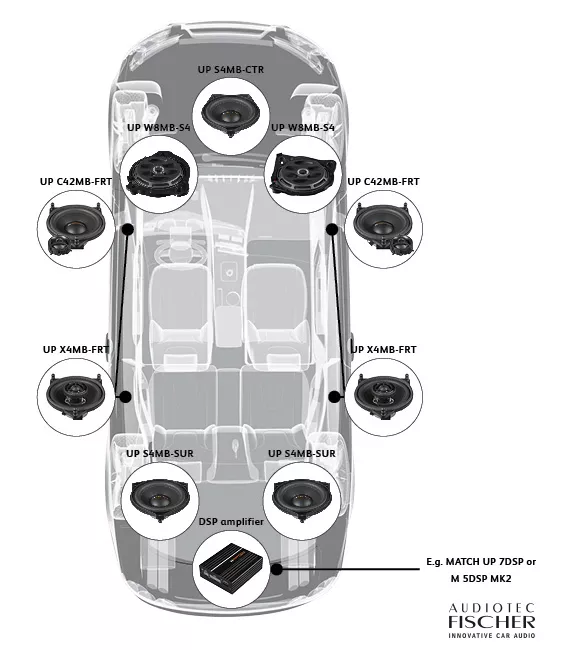

• Perfectly combinable with other MATCH UPGRADE components – e.g., DSP amplifiers
• Left-hand drive version

Technical Data

RMS / Max. Power.	P	100 / 200 Watt
Impedance	Z	1 x 4 Ω
DC resistance	Re	3.3 Ω
Frequency range		25 - 250 Hz
Resonance frequency	Fs	46 Hz
Mechanical Quality	Qms	1.76
Electrical Quality	Qes	0.77
Total Quality	Qts	0.54
Compliance	Cms	225 µm/N
Equivalent Volume	Vas	15 L
Force factor	B*I	8.0 Tm
Efficiency	SPL	91 dB @ 2.83V / 1m 88 dB @ 1W / 1m
Membrane area	Sd	216 cm²
Moving mass	Mms	40 g
Membrane material		Paper membrane
Mechanical resistance	Rms	1.6 kg/s
Voice coil diameter	ø	37 mm
Voice coil winding width		16 mm
Max. linear diaphragm stroke	Xmax	+/- 5 mm

Compatibility

Model	Model type	Series	Year of construction
GLE / GLS	SUV Coupe	167	from 2019

Status: December 2022

Scope of delivery

2 x Subwoofer MATCH UP W8MB-S4.2 Left-hand drive version

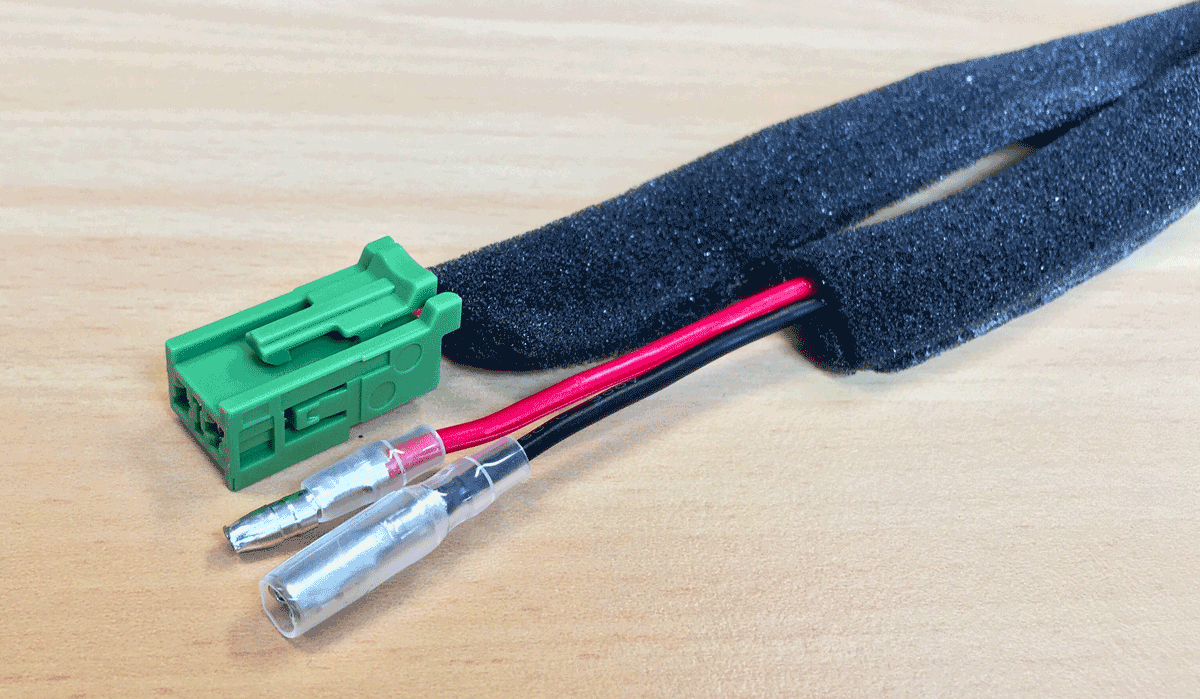

2 x Universal connection cables
1 x Instruction manual
