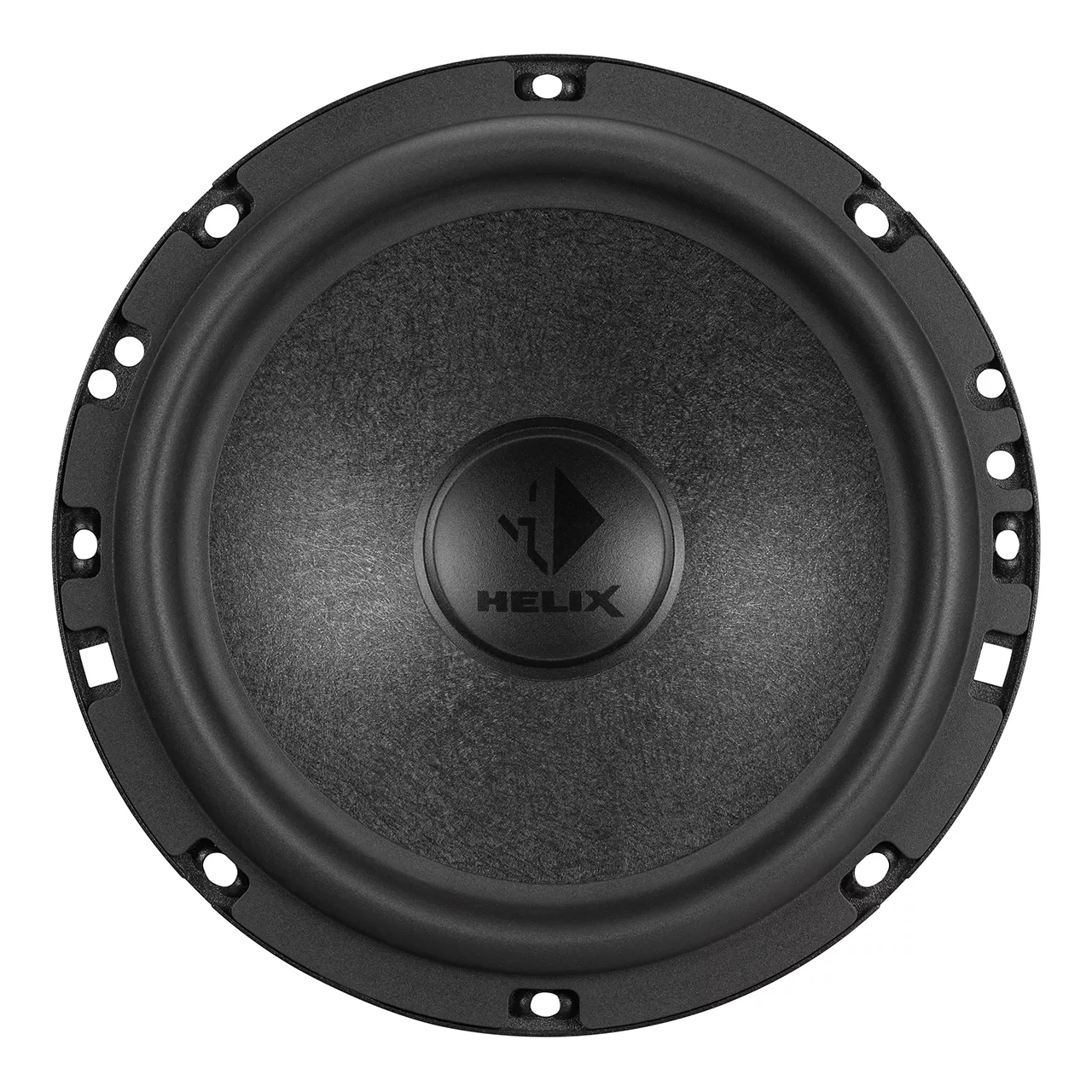

HELIX S 6B 16-cm Mid-bass speaker
- Product number:: 33856888 |
- EAN: 4057204321239 |
- Manufacturer: Audiotec Fischer
Dazu passt
No longer available
A low-midrange speaker in an elegant design, optimized for maximum sound quality.
The highly rigid diaphragm is made of a novel basalt fiber-paper compound. A perfect combination to guarantee clear, unadulterated sound even at high volumes. In addition to powerful bass reproduction and incomparably neutral midrange, the S 6B also boasts exceptionally low distortion.
The dream team is the combination with the S 1T tweeter, which ideally extends the frequency range. In conjunction with a power amplifier from Audiotec Fischer, the S loudspeakers perform at their best and provide the perfect basis for top-of-the-line sound systems!
Features
- 165 mm mid-woofer with innovative basalt fiber-paper compound cone – an ideal combination of low weight, high rigidity, and internal damping
- Specially shaped rubber surround for a larger effective cone area and extended maximum excursion
- Custom HELIX-designed basket with additional ventilation openings for optimized voice coil cooling and high power handling
- Solid rubber protection with HELIX logo for the magnet systems
- Gold-plated connection terminals
Technical Data
| Power RMS / Max. | P | 100 / 200 Watt |
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency range | 45 Hz - 4,000 Hz | |
| Resonance frequency | Fs | 67 Hz |
| Mechanical Quality | Qms | 3.87 |
| Electrical quality | Qes | 0.96 |
| Overall quality | Qts | 0.77 |
| Compliance | Cms | 370 μm/N |
| Equivalent volume | Vas | 10.3 L |
| Power factor | B*I | 4.8 Tm |
| Efficiency 1 W / 1 m | SPL | 90 dB |
| Membrane area | Sd | 141 cm² |
| Moving mass | Mms | 14.8 g |
| Membrane material | Basalt fiber-paper compound | |
| Mechanical resistance | Rms | 1.64 kg/s |
| Voice coil diameter | ø | 25 mm |
| Voice coil winding width | 12 mm | |
| Max. linear diaphragm stroke | Xmax | +/- 3 mm |
| Outside diameter | ø | 165 mm |
| Installation diameter | ø | 143 mm |
| Installation depth | 65 mm | |
| Recommended case volumes | ||
| Closed housing | ||
| Net volume | 9 L | |
| Lower limit frequency (-3dB) | 75 Hz | |
Scope of Delivery
2 x HELIX S 6B Mid-bass Drivers
1 x Mounting Hardware
1 x Datasheet
1 x Mounting Template
| Weitere Spezifikationen | |
|---|---|
| LS-Bauart | Tief-Mitteltöner |
| LS-Bauart | Einzellautsprecher |
| LS-Belastbarkeit | 51-100 Watt RMS 101-200 Watt RMS |
| LS-Impedanz | 4 Ohm |
| LS-Lautsprechergröße | 16 cm |
| Fahrzeughersteller | Universell |
