HELIX CFMK165 AUD.1 | COMPOSE FlexMount adapter rings

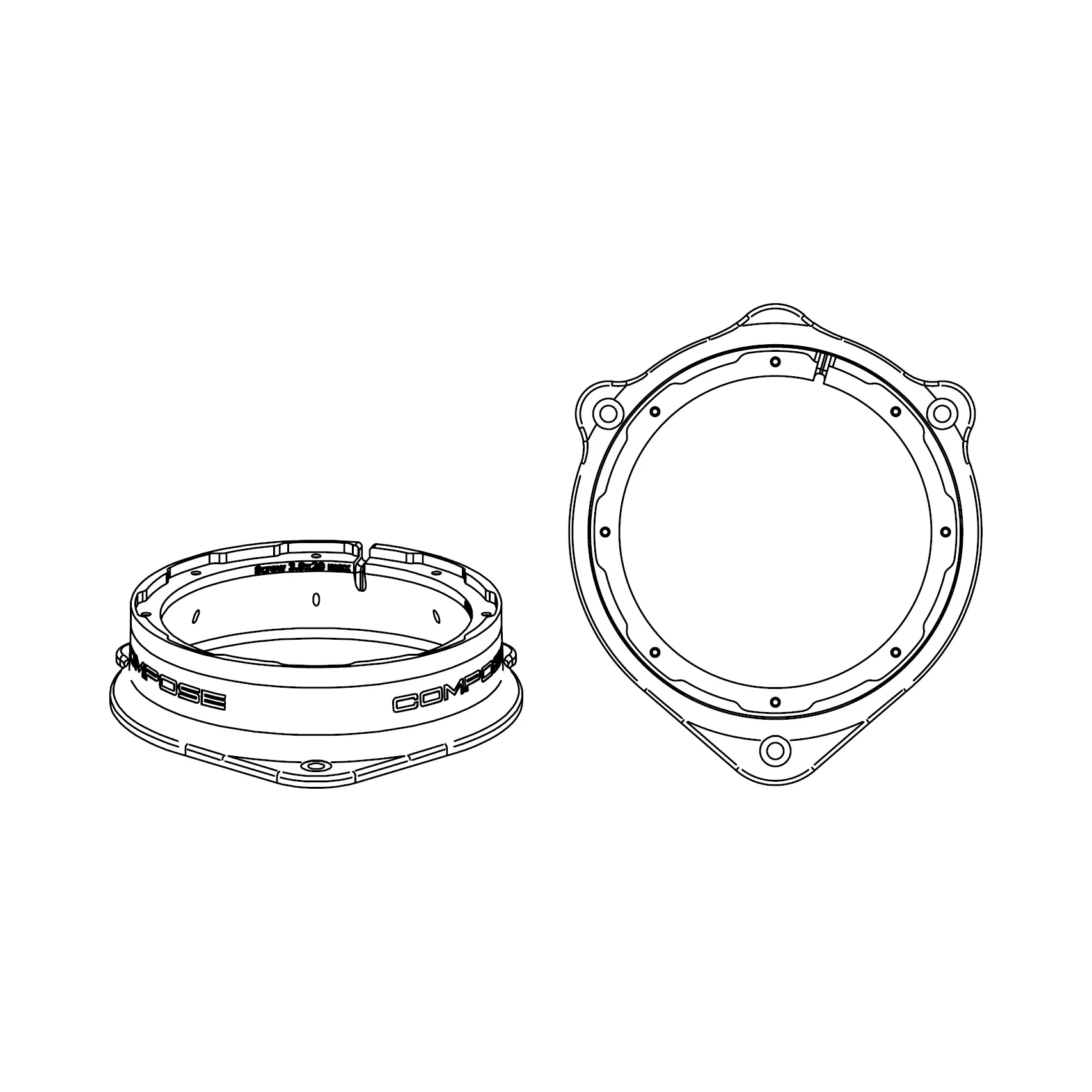

FlexMount is a mounting system based on specially developed adapter rings.
With the help of the adapter ring, your universal 165 mm HELIX COMPOSE loudspeaker becomes a vehicle-specific loudspeaker that can be easily and acoustically optimized installed in the vehicle's original mounting position.

The adapter rings are manufactured in-house using state-of-the-art FDM 3D printing technology. The special material used is perfectly suited for automotive applications and is characterized by its extremely high strength and rigidity. Thanks to these special material properties, our FlexMount adapters are highly resistant to weathering, UV radiation, oils, and greases. Furthermore, it covers the extremely wide automotive temperature range from -40°C to over +90°C, guaranteeing durability and dimensional stability even under the most demanding conditions.

Features

• Vehicle-specific adapter ring for professional and acoustically optimized installation of the 165 mm HELIX COMPOSE mid-bass drivers with FlexMount165 technology in the vehicle's original mounting location
• Easy and secure installation thanks to torsionally rigid adapter rings
• Sophisticated design for high stability, durability, and optimized acoustic properties
• Includes seals to prevent acoustic short circuits and moisture ingress
• In-house production using state-of-the-art FDM 3D printing technology
• Made in Germany

Compatibility

Speakers:

• Ci7 W165FM-S3
• Ci3 W165FM-S3
• Ci3 W165FM-S2
• Ci3 K165.2FM-S3
• Ci3 K165.2FM-S2
• Ci3 C165.2FM-S3

Vehicles:

• Suitable for many Audi, Seat, Saab and Lamborghini vehicles with original woofer mounts
• Further information on vehicle compatibility can be found in the FlexMount Finder from Audiotec Fischer

Scope of delivery

2 x FlexMount165 adapter ring
2 x speaker seals
1 x mounting hardware
